6 Color cheap plastic film/Paper CI flexo printing machine

The 6-color CI (cental impression) or central drum flexo printing machine is designed for industrial large-volume fine printing. Based on the unique structure of the CI flexo printing machine, all printing units are centered around the central impression drum, so the tension of the material is very stable. Its printing accuracy and quality are very good, and it can almost be Comparable to gravure printing, it uses water-based ink and solvent-based ink, is green and environmentally friendly, and is suitable for food, pharmaceutical packaging and other industries. The maximum printing speed can reach 150 meters per minute, making it an economical CI flexographic printing machine.

Parameter

TECHNICAL SPECIFICATIONS

Model

YTCI6-800

YTCI6-1000

YTCI6-1200

YTCI6-1400

Max. Web Width

800mm

1000mm

1200mm

1400mm

Max. Printing Width

760mm

960mm

1160mm

1360mm

Max. Machine Speed

180m/min

Printing Speed

150m/min

Max. Unwind/Rewind Dia.

φ1000mm

Machine Transmission structure

Gear drive.

Thickness of flexo plate and double side tape

Photopolymer plate（2.38+0.38）mm （or according to customer requirements）

Suitable Ink

Water base ink & solvent ink

Printing repeat length

300mm-800mm

Suitable Material

Plastic film, Paper, non-woven/pp woven and so on

Machine Voltage

Voltage 380V/3Phase/50 HZ. (or according to customer requirements）

Video Introduction

Welcome to watch videos of our machines on YouTube, and if you like, please subscribe to our channel.

6 color cheap plastic film/paper CI flexo printing machine

Main characters

◊ A wide range of substrates, such as pet, Bopp, paper, non-woven, pp woven and so on.

◊ The printing material is tightly attached to the surface of the large central drum, and the tension is stable, especially when printing shrinkable films.

◊ Chamber doctor blade and ceramic anilox roller transfer ink, diaphragm pump circulate ink, ink volume is stable.

◊ The surface of the central impression drum is chrome-plated, with a diameter of up to 2 meters and constant temperature control.

◊ When printing materials such as heat shrink film that require water cooling, a water-cooling device can be installed.

◊ Independent hot air electric heating drying unit, high efficiency and energy saving, optional steam or hot oil drying.

◊ The printing speed can reach up to 150 meters per minute. It adopts electric color registration and pressure adjustment, and the accuracy can reach ±0.12mm.

◊ Machine equipped with a video inspection camera to observe the printing quality in real time.

◊ Computerized automatic color registration systems, UV drying, turn bur, Non-stop roll change platform) can be installed according to customer needs to meet different production needs.

◊ Hydraulic shaft less unwind is optional for customer, unwind part and rewind part can customize according to customer requirements.

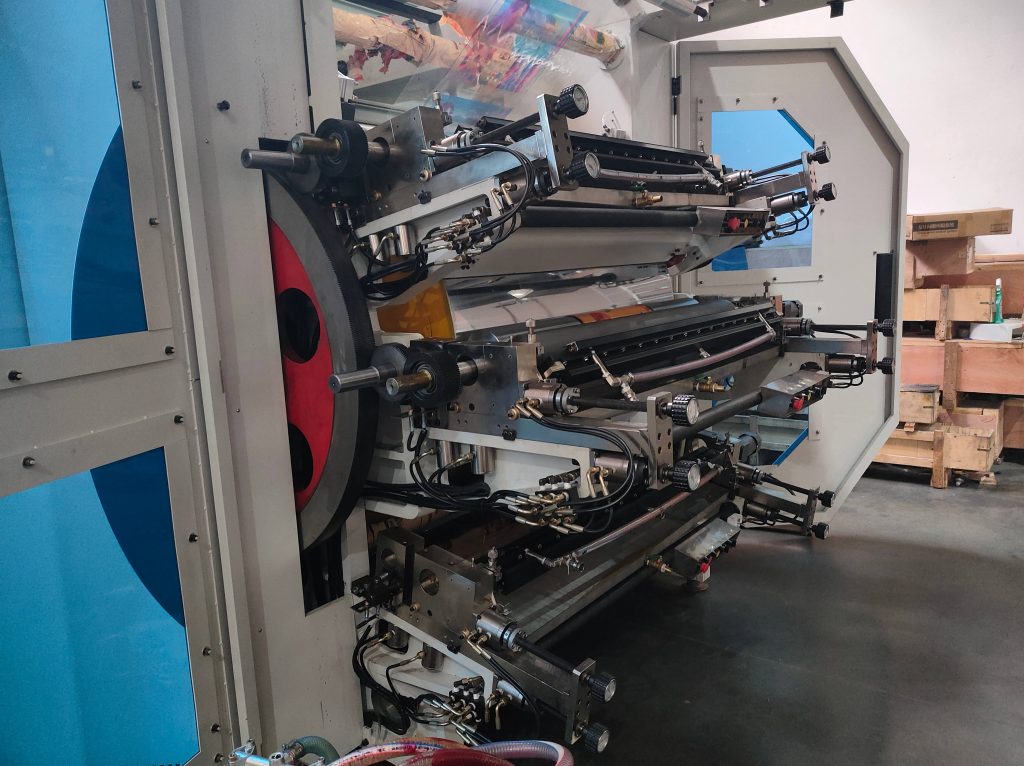

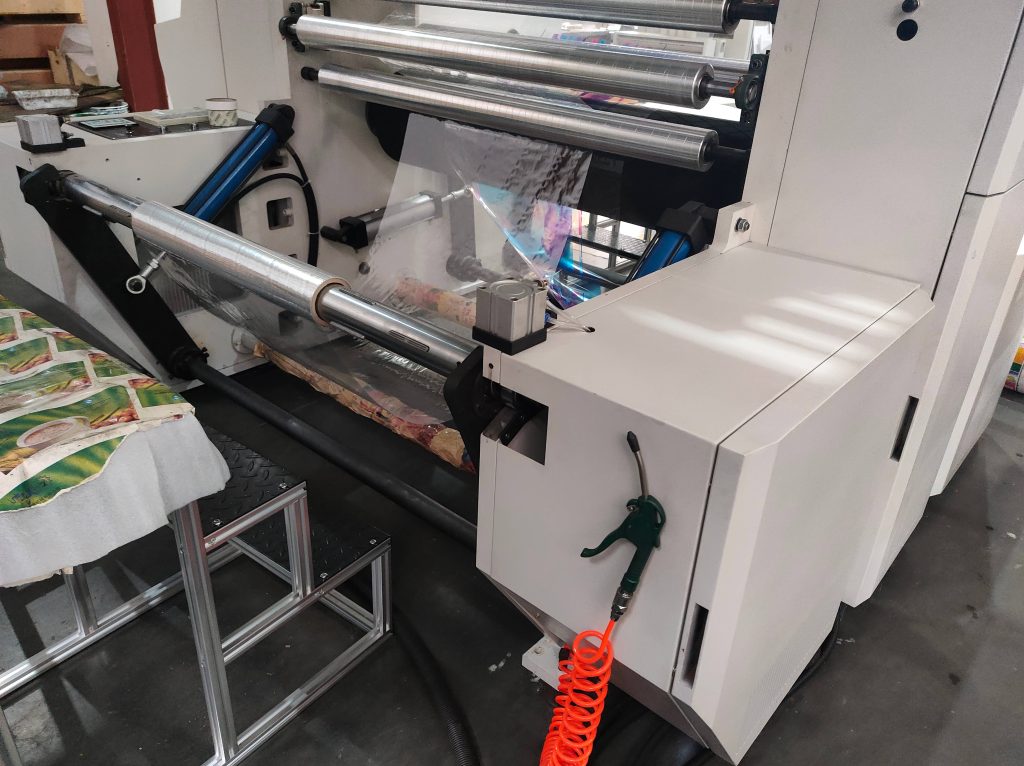

Machine Details

Printing Sample

Packing and Delivery
