The 8-color laminated label flexographic printing machine uses water-based ink and UV ink. The machine has a unique structure and is specially designed for various self-adhesive labels. It can be widely used in food labels, daily chemical labels, pharmaceutical labels, logistics labels and other fields. . 360-degree circumferential plate registration, color registration accuracy reaches ±0.15mm. A LED UV drying device can be installed to ensure the machine's drying efficiency and printing quality.
Parameter
| TECHNICAL SPECIFICATIONS | ||||
| Model | CYRY8-320 | CYRY8-350 | CYRY8-450 | CYRY8-650 |
| Max. Material Width | 330mm | 360mm | 460mm | 660mm |
| Max. Printing Width | 320mm | 350mm | 450mm | 650mm |
| Max. Machine Speed | 90m/min | |||
| Printing Speed | 80m/min | |||
| Max. Unwind/Rewind Dia. | φ600mm | |||
| Machine Transmission Structure | Gear drive. | |||
| Plate thickness & double side tape | Photopolymer plate （1.7+0.38mm） or according to customer requirements) | |||
| Suitable Ink | Water base ink or solvent ink | |||
| Printing repeat length | 175mm-410mm | |||
| Range Of Substrates | BOPP, CPP, PET, PAPER（20-150g/m², PVC | |||
| Machine Voltage | Voltage 380V/3Phase/50 HZ （or acording to customer requirements） | |||
Video Introduction
Welcome to watch videos of our machines on YouTube, and if you like, please subscribe to our channel.
Machine Features
◊ Suitable for various high-end self-adhesive trademarks and film materials.
◊ The whole machine adopts imported frequency converter to control the speed, and the maximum printing speed reaches 100 meters per minute.
◊ Both unwinding and rewinding use a 3-inch air shaft to clamp the material and automatically control the tension.
◊ The unwinding part is equipped with an auto web guide system to prevent the material from deflecting.

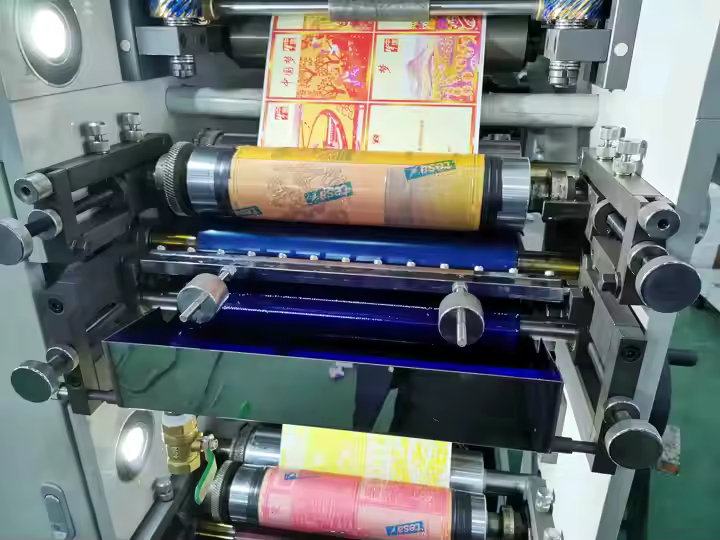

◊ Single scraper and ceramic anilox roller transfer ink, ensuring uniform ink volume. Ceramic rollers have a long service life, are corrosion-resistant and wear-resistant.

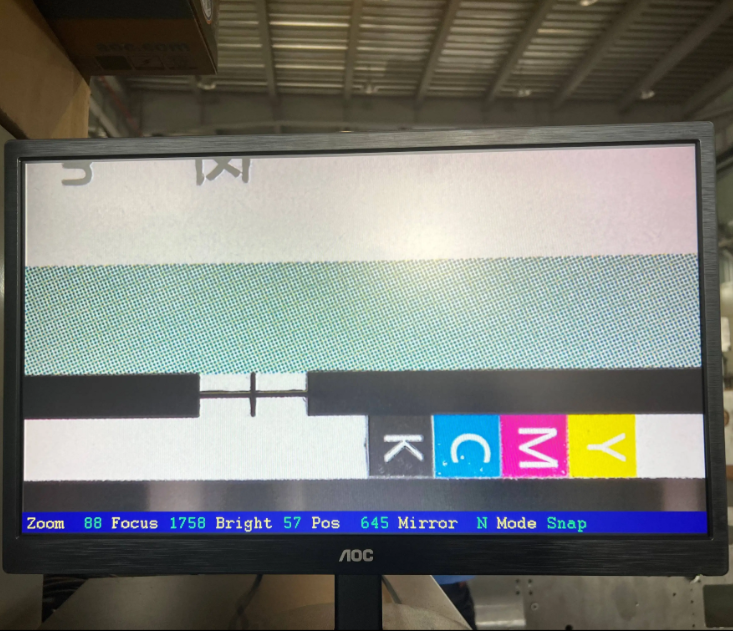

◊ Manual pressure adjustment,360-degree circumferential color registration adjustment, color registration accuracy reaches ±0.15mm

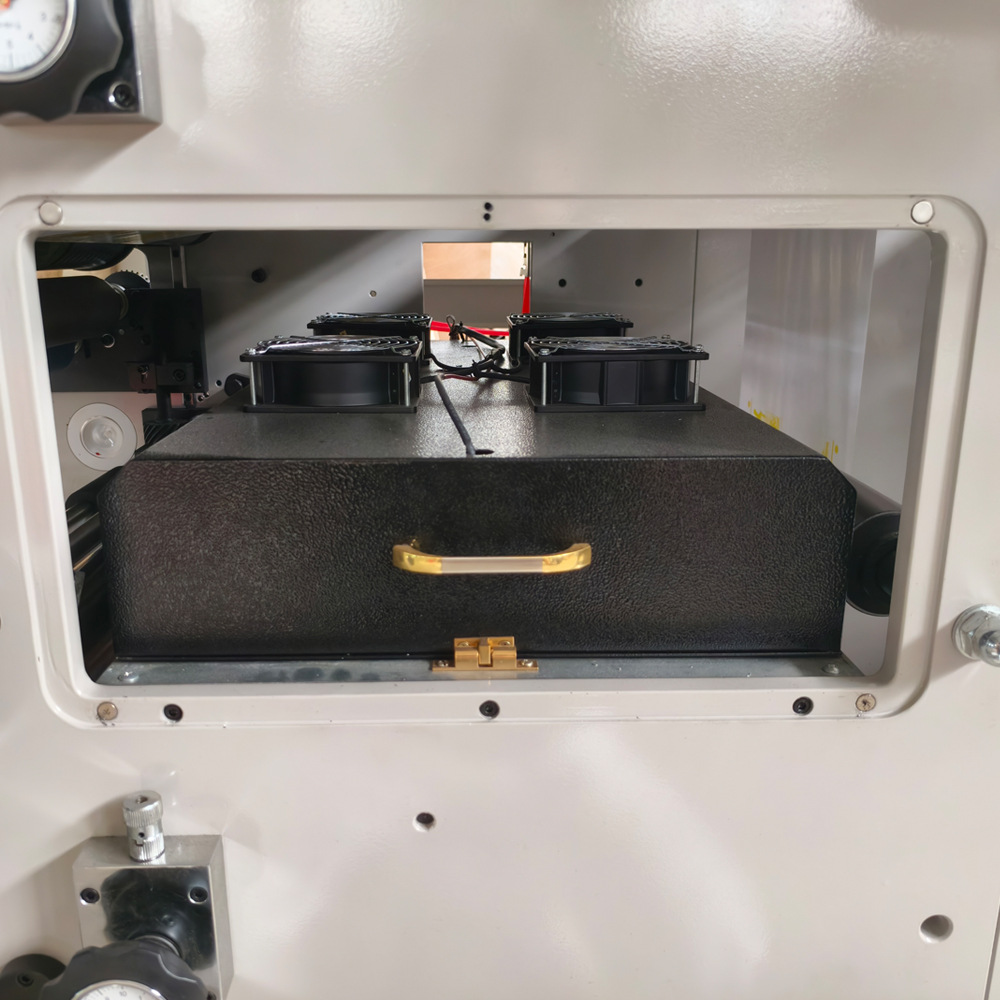

◊ Each printing unit has an independent infrared drying device, which can be replaced with a UV drying device.

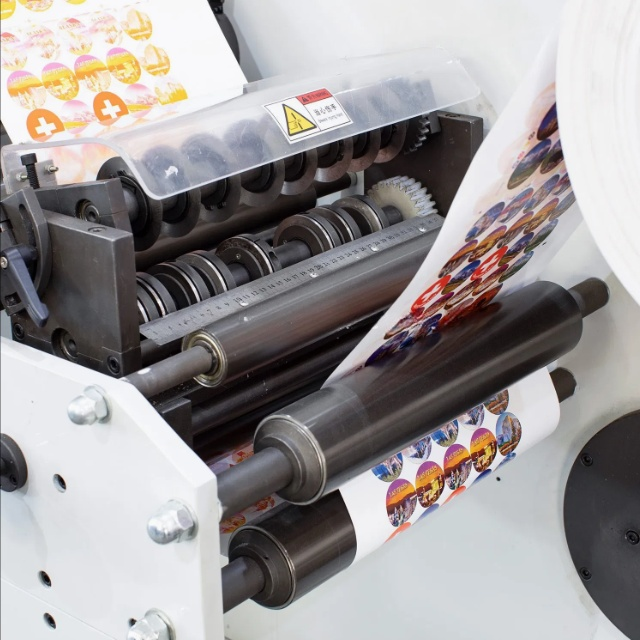

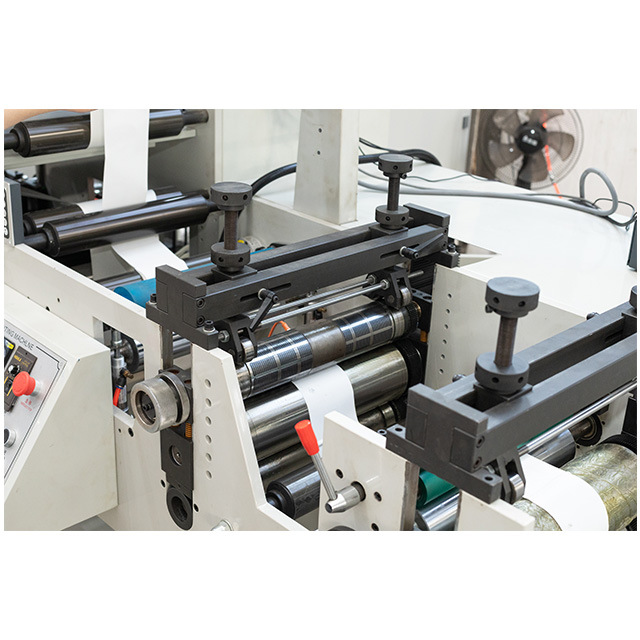

◊ Die-cutting, slitting, glazing, laminating, and cross-cutting devices can be installed according to customer requirements.
◊ When printing heat-shrinkable materials, a water-cooling roller can be installed to prevent the material from deforming due to excessive temperature after drying.
◊ The machine is made of 60mm thickened iron wall panels and operates stably.
◊ Independent hydraulic unwinding can be selected according to customer requirements; the maximum unwinding diameter reaches 1000mm.

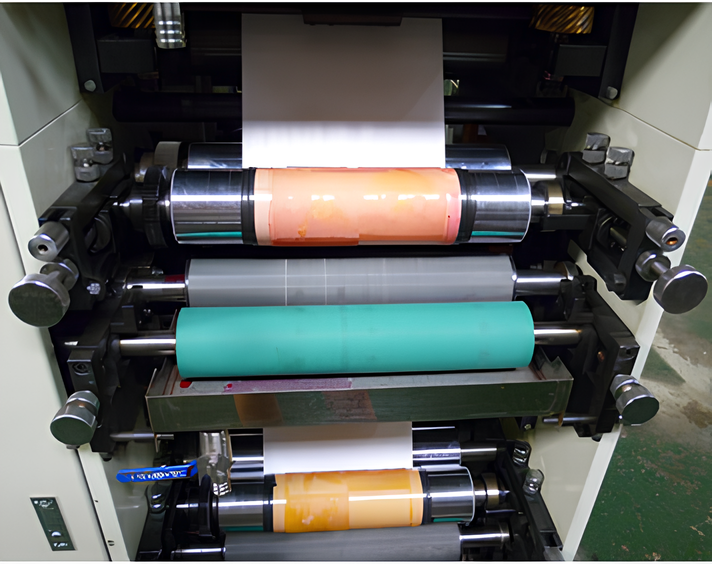

Machine Details
Printing Sample
Packing and Delivery
